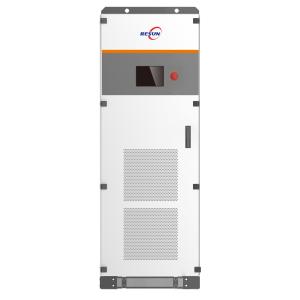

100KW Redundant Mode Isolated PCS Power Converter System

Name: 100KW Redundant Mode Isolated PCS Power Converter System
Brand: RUSEN
Price: 1 USD

Quality 100KW Redundant Mode Isolated PCS Power Converter System for sale

Brand Name : RUSEN

Model Number : PCS-A100-MG

Certification : IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-30days

Model : PCS-A100-MG

Power Rating : 100KW

Max Efficiency : 97.1%

Operating Temperature Range : -30 ~ 55℃

Battery Compatibility : Li-ion / User-defined

Rated Battery Voltage : 420-850V

Cooling Method : Automatic

Input Voltage Range : 50/60Hz

PV INPUT DC voltage, current : 420-850V

Communication InterfaceInterface : RS485/Wifi/GPRS/CAN/TCP/IP

Certifications : IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Warranty : 5 years

Contact Now

100KW Redundant Mode Isolated PCS Power Converter System

• Redundant mode isolation PCS accurately achieves AC/DC power conversion, ensuring efficient transmission and conversion of electrical energy in different power scenarios, and meeting diverse electricity needs.
• Equipped with redundant mode, it automatically switches in case of faults, maintaining stable system operation and greatly reducing the risk of downtime caused by faults.
• With excellent isolation performance, it effectively resists electromagnetic interference and is suitable for fields such as industrial production, data centers, and new energy generation that require strict power supply stability.

KEY STRENGTHS

• Reactive power, active power adjustable.

• Redundant design for auxiliary power supply.

• Highest power density, maximum efﬁciency reach 97.5%.

• Built-in isolation transformer, adapt to impact load.

Description

Model	PCS-A100-MG
DC(battery)
Voltage range (V)	420~850
Max. current (A)	270
AC(on-grid)
Max. output power (kW)	110
Rated output power (kW)	100
Rated voltage (V)	400
Voltage range (V)	320~460
Rated current (A)	144
Max. output current (A)	159
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55 / 55~65
THDi	<3%
Power factor	1leading~1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Rated voltage (V)	400
THDu	<1% Linear ＜5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term
General data
Max. efﬁciency	97.1%
Ingress protection	IP21
Noise emission (dB)	<70
Operating temperature (℃)	-30 ～ +55
Cooling	Forced air
Relative humidity	0 ~95% non-condensing
Max. operating altitude (m)	5,000(>3,000 derating)
*Dimension WDH (mm)*	*8008001,900*
Weight(kg)	936
Self-consumption	<0.5%
On/ off grid switching	Automatic
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certiﬁcates	IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
